7 hydraulic extensions
8 operating functions
Radio remote control for precise and safe handling
Thanks to its exceptional lifting capacity, it boasts a maximum lifting moment of 68.50 tm (672 kNm). With the jib attached, it achieves an impressive maximum outreach of 30.45 meters.
In terms of load capacity:
It can lift 3,280 kg at 16.1 meters
Or 1,600 kg at a distance of 23 meters with additional equipment
The crane’s robust construction and wear resistance ensure long-lasting performance and reliability, even in the most demanding field conditions.

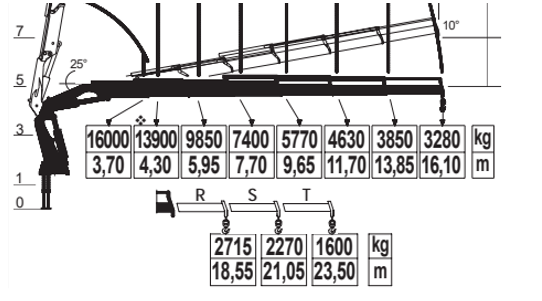

A load chart in kg/m is shown in the following image.
The truck is equipped with eight wheels, of which six are driven, providing exceptional traction and stability on demanding terrain. Thanks to its drivetrain, the vehicle can easily overcome mud, snow, sand, and other off-road challenges with confidence.
At the heart of this vehicle’s performance is our torsionally “absolutely rigid” auxiliary chassis, proudly engineered and manufactured in-house. This robust subframe is a key component of the vehicle’s overall quality, enabling both the truck and the crane to fully unleash their capabilities.
The auxiliary chassis is physically separated from the truck’s main chassis by 10 mm, proving that it independently handles all the stresses and forces imposed by the crane. Meanwhile, the truck—with its outstanding off-road mobility—can transport this setup practically anywhere, even, as we like to say, if someone ever decides to install a power grid in the Himalayas.
